The Mohr MSR Oil Water Separator is designed to receive oily water by gravity flow, and process it on a once-through basis. The oil in this mixture is usually in the form of various sized droplets. As the oily water passes through the spaces between the plates, the oil droplets will rise due to their buoyancy and impinge onto the underside of the plates, effectively collecting it onto its surface. As more and more droplets are captured, they coalesce into larger droplets, rising upwards through the oil ports of the plates, and form an oil film on the surface of the water.
Mohr Separations Research
Mohr Separations Research (MSR) Coalescing Plate Module Oil Water Separator systems are designed as a passive gravity-flow system to separate oil from water. Utilizing the differences in specific gravities between oil and water, the Mohr MSR Oil Water Separator system effectively and efficiently enhances separation by the use of the MSR “arc” coalescing plates.
How It Works
Key Features & Advantages

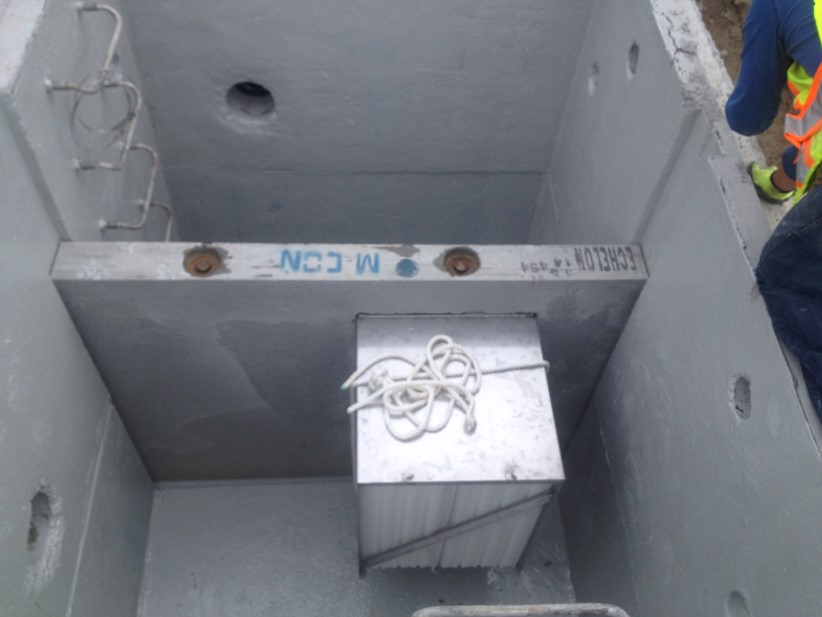

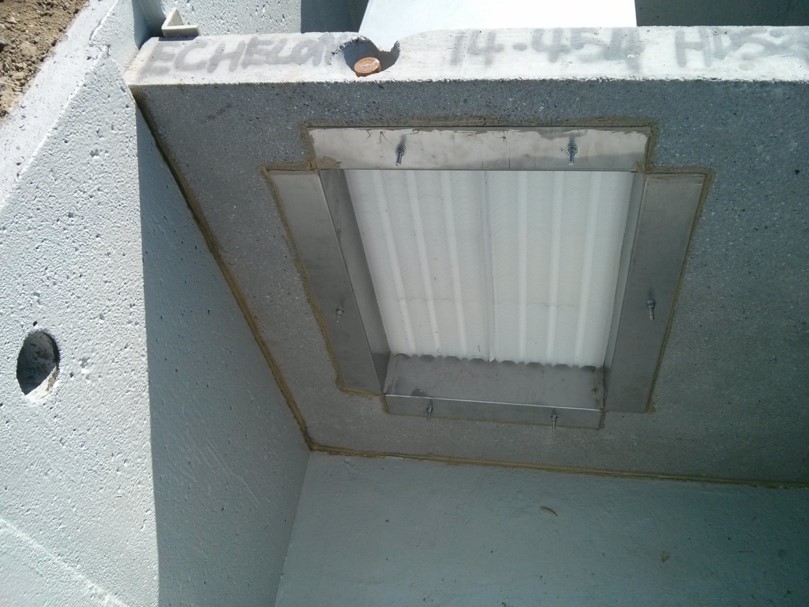

- Can be installed in new or existing manholes or vaults
- Passive system that does not require power for operation
- Precast structures designed to meet CHBDC CL-625 loading requirements
- Modular in design; easy to handle and ideal for small footprint designs
- Reduces effluent concentrations to 10 – 15 mg/L
- Inherent self-cleaning plate design; solid dump openings provide clear path to vault sump
Configurations
- Available as both above and below ground separator systems
- Custom Cast-In-Place vaults
- Precast manholes and vaults
- Detachable frame style design
- Fiberglass, plastic, or steel separators
- Pressure vessel separators
- Retrofit into existing structures
Applications
- Airport refuelling station or parking areas
- Auto repair facilities
- Equipment washdown facilities
- Food processing plant
- Gas stations
- Power generator stations
- Truck depots
- Many other applications available
